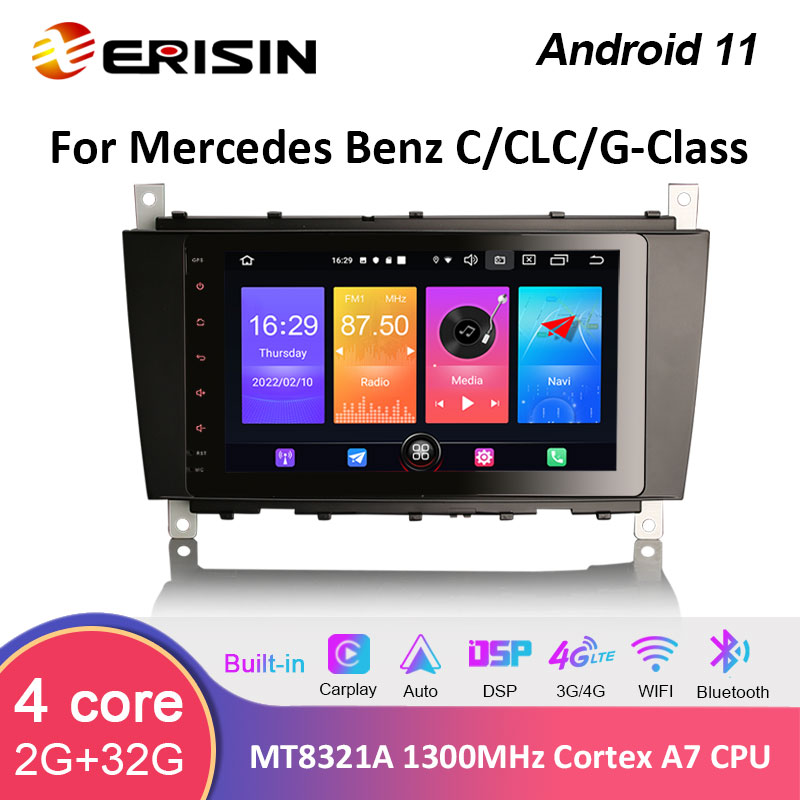

ES2769CN 8" DSP Wireless Carplay Auto Android 11 Car Stereo GPS Radio For Mercedes Benz C-Class W203 CLC CLK W209
USD $120.95
USD $249.75

1

Please selectShips From
----
qty :
6 available
Pay with
Close
USD $120.95
Ships From:
Hong KongX United KingdomX GermanyX
qty :
6 available
Pay with
Have a question?
Find answers in product info, Q&As, reviews
Have a question?
Combined Products
$120.95
$90.29
$5.61
$28.89
$36.63
$7.86
$15.48
$40.95
$11.65
Description

Key Features:

- Android 11.0 OS, Quad Core, 2GB RAM and 32GB ROM, 1 Card/3 USB up to 4*128GB extended Storage.
- Built-in Can-bus Decoder (which costs at least USD 45 in the market).
- Built-in DSP Amplifier System, which bring the perfect sound effect in your car.
  For car modification enthusiasts, this unit also provides a special optical fiber connector, which can be connected
  to your modified (not original) optical amplifier and achieve lossless sound quality through optical fiber transmission.
- Built-in Wireless Apple CarPlay and Wired Android Auto module, you don't need to use another adapter, just
  just connect your iPhone to this unit via Bluetooth to use the CarPlay function, or connect your Android
  phone to this unit via USB to use the Android Auto function.
- Built-in Bluetooth module, which supports hands-free function with A2DP Audio Streaming.
- Built-in GPS Module, which supports offline GPS Navigation, GPS function ready to use.
- Built-in WiFi Module for Internet, you can Link mobile hotspot to use Google online Navigation.
- Built-in Android Multimedia Player, can play Music/Video/Photo from local Disc or USB/TF.
- Built-in USB, TF, Radio, RDS, WiFi, Clock, Calculator, Calendar.
- Support DAB+, DVB-T/T2, TPMS, OBD2, DVR, Camera, AVIN, 3G, 4G etc. extended functions.
- Support steering wheel control, easier and safer to adjust volume, answer calls and switch the songs while driving.
- Support panel light colors adjustment, many RGB-colors can be chosen.
- Support Split Screen, you can run two apps side by side.
- Beautiful and fashionable 3 main menu UI Design.



Compatible Models & Years:

- Mercedes Benz C-Class W203 2004-2007
(C180 C200 C220 C230 C240 C250 C270 C280 C300 C320 C350 C32 AMG C55 AMG C63 AMG)
- Mercedes Benz CLC Class W203 2008-2010
- Mercedes Benz G-Class W463 2006-2008 (G350 G500 G55)


Important Note:
1.This unit has front panel size 260mm(Top width)*120mm(High)*240mm(Bottom width). To make sure the item fits your car, please check the shape and dimensions of your original car Media Player which is the same as the description in our listing before bidding.
2. If your CLK 2005-2009 car's radio is similar to this item, but its face panel size has only
253mm*120mm*239mm, this item will not fit your car. please find the other item ES8584 in our shop.
3. For
Mercedes-Benz C/CLK 1998-2004 older model cars which with face panel size 220mm*124mm*210mm, please find the other item ES8587 in our shop.
4. In a few cases, if your vehicle comes with the
original D2B Optical Bus System COMAND 2.0 or COMAND 2.5, you need to get an extra Optical Fiber Decoder Box for decoding audio. (ERISIN DB001 is compatible, you can contact us to buy it.)



ES2769CN 8" Quad-Core Android 11.0 Car Multimedia with GPS/WiFi/TPMS-IN/DVR-IN/DTV-IN/DAB-IN...



  General
- Power Supply: DC 12V (allowance range: 10.8-14.5V)
- Max. Current: 10A
- Screen Size: 8 inch
- Front panel Size: 260mm(Top width)*120mm(High)*240mm(Bottom width)
- Package Size: 340mm*270mm*200mm
- Shipping Weight: 3.0kg



  System
- Operation System: Google Android 11.0
- CPU: MT8321A 1300MHz Cortex A7
- RAM: 2GB
- Internal Memory: 32GB
- Extended Card/USB: Support USB/SD up to 128GB



  Display
- Screen Type: Multi-touch screen
- Multi-windows view: Yes, support Split Screen, you can run two apps side by side
- Resolution: 1024*600
- Capacitive or Resistance Screen: Capacitive
- Built-in Clock and Calendar: Yes, show real time and can use network-provided time
- Main Menu Status Bar display: Can be changed to Music/Radio/BT-Stereo Player and Clock/Date/Week
- Change Wallpapers: built-in 2 live wallpapers, 7 standard wallpapers, support User's wallpaper
- Change Apps-Icon Position: Yes



  Internet
- WiFi Internet: Built-in WiFi Module, support 802.11b/g/n, support WiFi Hotspot
- 3G/4G Internet: USB 3G/4G Dongle not included, just contact us to buy it together
- Explorer: Opera, UCWeb, SkyFile, Dolphin and more explorer for your selection
- Online Entertainment: Online Video, TV, Movie, Music, Radio, Video Chat
- Online Navigation: Online Google Maps Navigating
- Online Games: Yes, online play or you can download it from google play store
- Online Communication: keep connected through WhatsApp, WeChat, Twitter, Facebook, Gtalk, Gmail...
- Read and edit Office Software: Yes, support Word, Excel, Powerpoint, PDF, TXT



  Audio
- Format: MP3, WMA, MP2, OGG, AAC, MA4, FLAC, APE, WAV etc. Could play via song list
- Record: MP3, WMA
- Other: LRC synchronized display; ID3 search; Search by files; Album Picture; User-defined audio effect
- Audio IC: Top Global Cirrus IC, independent audio decoding
- SNR: Noise rations:=90dB



  Video
- Format: Support AVI (H.264, DIVX, XVID), rm, rmvb, MKV (H.264, DIVX, XVID). WMA, MOV, MP4 (H.264, MPEG,
  DIVX, XVID). DAT (VCD format). VOB (DVD format). PMP, MPEG, MPG. FLV (H.263, H.264). ASF, TS, TP, 3GP,
  MPG ect. =30 formats, Playing internet video directly (while downloading)
- Play: Up to 1920*1080 Pixels, 30Mb. Fluent play without light spot
- Video Output: Common Video Output (AV)



  GPS
- Operation System: Android 11.0
- Support Maps: IGO, Sygic, Waze maps for Android 11.0
- Support offline navigation: Yes, ready to use.
- Dual Zone: Yes, navigating while music playing
- Online Navi: Yes, support online navigating such as google maps



  Bluetooth
- Hands Free: Yes
- A2DP (Bluetooth Stereo Music): Yes, can play stereo music through Bluetooth
- PB-Download: Yes, can download phonebook from mobile to this unit
- PB-Search: Yes, can use the first letter to search contact member in PB-Listings
- Calling Records: Yes, Dialed Call, Received Call, Missed Call
- Built-in Microphone: Yes, on the front panel
- External Microphone Jack: Yes, on the back, external Mic. incl.



  Radio
- Main Chips: TEF6686
- AM Frequency Range: 522-1620KHz
- AM Increment: 9KHz(EU)/10KHz(US)
- FM Tuning Range: 87.5-108MHz
- FM Increment: 0.05MHz(EU)/0.1MHz(US)
- FM Area: Europe/USA1/USA2/Japan/Russia
- RDS: On/Off
- Preset Stations: 30(FM 3*6, AM 2*6)



  USB
- Position: 3 USB On the Back
- Function: Can be connected with U-Disc, 3G/4G Dongle, CarPlay Dongle, TPMS-Device, DVR-Camera, DAB+ Box, Smartphone etc.
- Capacity: 128GB
- Play MP5 Videos: Yes, can play RMVB Videos up to 1080P



  TF
- Position: On the front panel
- Function: Can be used as Multimedia card or GPS card slot.
- Capacity: 128GB
- Play MP5 Videos: Yes, can play RMVB Videos up to 1080P



  CarPlay
- Built-in CarPlay: Yes, just connect your iPhone to this unit with Bluetooth to use this function
- Connection Port:  Bluetooth
- Support Device: iPhone iOS 7.1 and above
- Unit's Screen Control Phone: No, but you can download CarPlay supported function APK to use and control



  Android Auto
- Built-in Android Auto: Yes, just connect your smartphone to this unit with USB to use this function
- Connection Port: USB
- Support Device: Android Smartphone with Android 5.0 and above
- Support Wireless connecting: No
- Control the connected Android Phone on head unit: Yes



  Car DVR
- Built-in Car Recorder App: Yes, just connect a USB Camera to use this function
- Support HD CCD Camera: Yes
- Play recorded Video directly: Yes
- Storing Position: Card/USB Storage can be changed



  TPMS-IN
- Built-in TPMS App: Yes, just connect a TPMS Module to use this function
- Connection Port: USB
- Power Supply to TPMS Module directly: Yes
- Touch Control: Yes



  DAB(+)-IN
- Built-in DAB Player App: Yes, just connect a DAB+ Box to use this function
- Connection Port: USB
- Power Supply to DAB+ Box directly: Yes
- Touch unit's screen to control the connected DAB+ Box: Yes

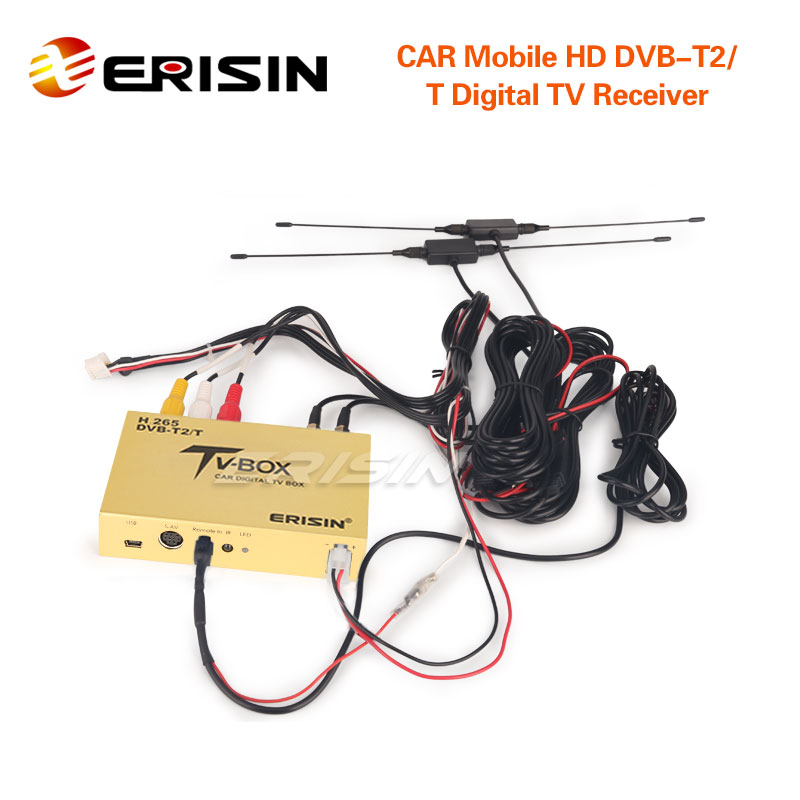

  DTV-IN
- Built-in DTV Player App: Yes
- Connection Port: Special
- Power Supply to connected DTV Box directly: Yes, you can connect our DTV Box to achieve this function
- Touch unit's screen to control the connected DTV Box: Yes, you can connect our DTV Box to achieve this function



  Additional
- Textbook: Could change font, font color, background color, bookmark, reading E-book while listening music
- Photo Viewer: Support JPS, BMP, PNG, GIF etc. format. play by revolve, Powerpoint Support 4096*4096 Pixels
- APK Installer: Support Android Package installer
- Support Torque Pro(OBD2 &Car): Yes, you can connect a Bluetooth OBD2 Scanner Tool to use this function
- Support steering wheel control, built-in CanBus decoder (it cost GBP30 in the market) included
- Support panel light colors adjustment, many RGB-colors can be chosen
- Built-in DSP Amplifier System, which bring the perfect sound effect in your car.
- For car modification enthusiasts, this unit also provides a special optical fiber connector, which can be connected to your modified (not original) optical amplifier and achieve lossless sound quality through optical fiber transmission.



  Input
- AUX Video In: One
- Rear-View Camera Video In: One
- External Microphone In: One
- AUX Audio In: R/L
- TPMS Box In: One
- DTV Box In: One
- DAB+ Box In: One
- Car DVR In: One



  Output
- Video Out: Yes, need buy the USB-RCA-Converter from us to share screen display with your passenger
- Audio Out: FR/FL/RR/RL
- Surround Stereo Out: 4*45w
- Subwoofer Out: One
- Fiber-Optic Audio Out: One



  Accessories
- 1*User's Manual in English
- 1*Din to ISO Radio Antenna Adapter
- 1*Din to Fakra Radio Antenna Adapter
- 1*RCA AV Cable
- 1*Control Cables and Camera-IN
- 1*External microphone Cable
- 1*USB Adapter Cable
- 1*GPS Antenna
